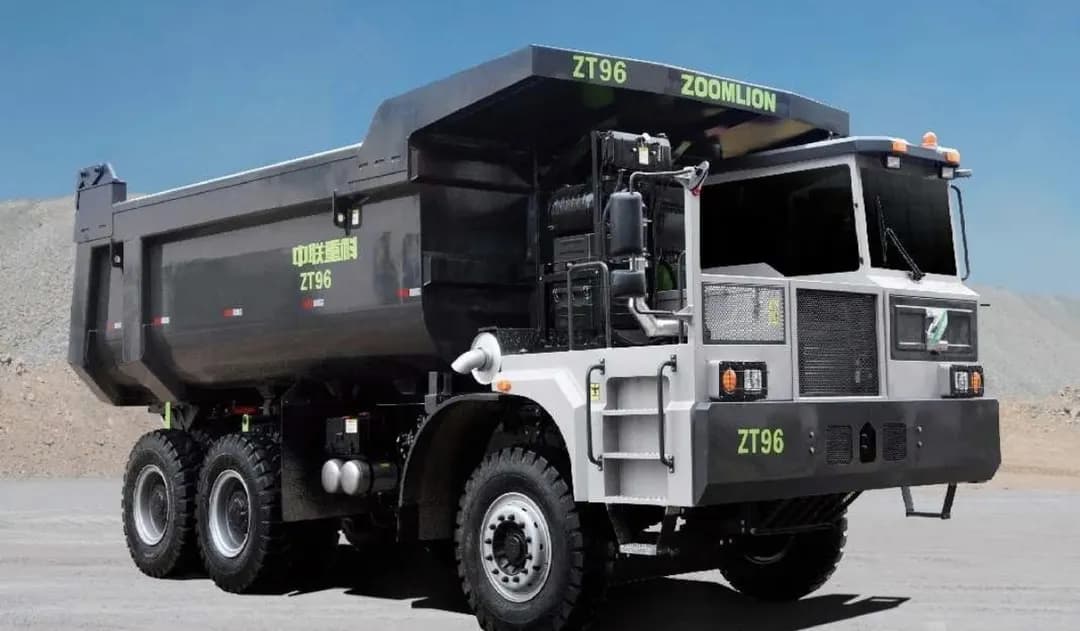

ZT96 ZOOMLION Quarry Dump Truck
Details
Description
ZT96 ZOOMLION Mining Dump Truck Main Parameters • Net Weight: 30 t • Rated Load: 60 t • Maximum Speed: 41 km/h • Max. Gradeability: 32 % • Min. Turning Radius: 12 m • Body Volume: 30 m³ • Front Tires: 14.00R25 • Rear Tires: 14.00R25 Main Parameters (Engine and Systems) • Engine Model: YC6K480-GT30 • Engine Displacement: 12.155 L • Emission Standards: China Non-road Stage III • Rated Power: 353 kW • Max. Torque: 2000 N m / 1100~1500 r / min • Gearbox: FAST 7DS220 • Steering: Fully hydraulic • Brake system: In-cylinder braking The design is based on a reinforced riveted frame with six cross beams. The fuel supply system has a three-stage filtration function for complete protection of the engine and fuel system. The high-torque gearbox, paired with drive axles designed specifically for heavy-duty operation, fully meets the requirements of owners.
